Downspout Installation and Repair

The general rule is one downspout for every 20 to 30 linear feet of gutter run. A typical Murfreesboro home with 150 to 200 linear feet of guttering needs 6 to 10 downspouts. However, homes with steep roof pitches, large roof surfaces, or heavy tree cover may benefit from additional downspouts to handle the high water volumes generated during Middle Tennessee's intense thunderstorms. Under-sizing downspout capacity is one of the most common drainage failures in the Murfreesboro area.

New downspout installation typically costs $10 to $25 per linear foot in the Murfreesboro area. Rerouting existing downspouts or adding extensions runs $150 to $500 depending on the complexity. Underground drainage connections range from $200 to $800 per downspout, depending on trench length and soil conditions. A standard above-ground downspout run from gutter to grade is typically 10 to 15 linear feet, placing individual downspout costs at $100 to $375.

Common signs of downspout failure include water pooling at the foundation during or after rain, soil erosion along the foundation perimeter, water stains or dampness on basement walls, gutters overflowing despite being clean (indicating a downstream blockage), visible rust or corrosion on downspout joints, and downspouts that have separated from the gutter outlet or pulled away from the wall. In Murfreesboro's clay-over-limestone soil, even minor downspout failures can quickly escalate to foundation issues because the soil does not absorb water efficiently.

Both approaches work when properly designed. Above-ground extensions are simpler and less expensive, using splash blocks or corrugated pipe to direct water 4 to 6 feet from the foundation. Underground drainage provides a cleaner appearance and more reliable water routing, connecting downspouts to buried PVC pipes that discharge at a designated point away from the home. In Murfreesboro, underground systems must account for the area's limestone-over-clay soil, which can be difficult to trench and may require professional installation to ensure proper slope.

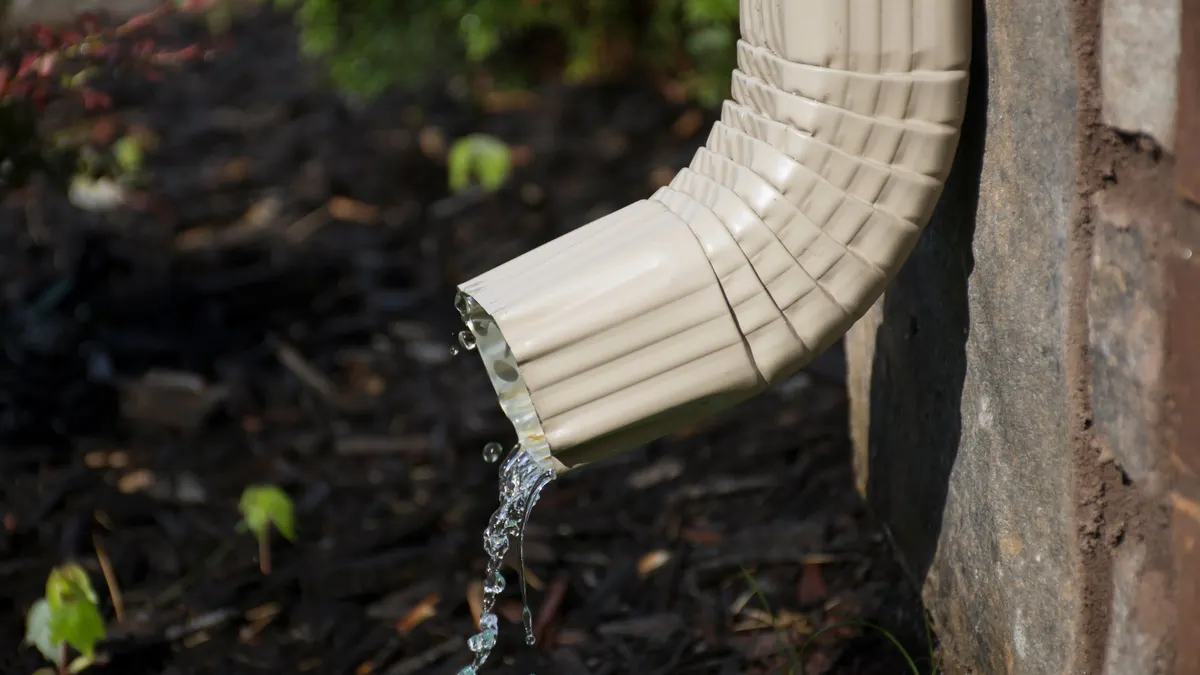

Downspouts should direct water a minimum of 4 to 6 feet from the foundation, though 8 to 10 feet is preferred for properties in Murfreesboro where the clay-rich soil resists water absorption. Water that pools within 2 to 3 feet of the foundation can infiltrate basement walls, erode soil around footings, and cause differential settling over time. Underground drainage systems that terminate 10 or more feet from the home provide the strongest protection, particularly during heavy rain events that can deposit several inches in a single hour.

Downspout failures are one of the leading causes of residential foundation problems in Middle Tennessee. When 52 inches of annual rainfall is concentrated at a single discharge point too close to the foundation, the resulting soil saturation creates hydrostatic pressure against basement walls and erodes supporting soil around footings. Murfreesboro's clay-heavy soil compounds the problem because it swells when wet and shrinks when dry, creating a cycle of expansion and contraction that stresses foundation walls. Properly sized and positioned downspouts with adequate extensions are the most cost-effective foundation protection available.
